MHIP — Operator How-To Guide

Internal ops tool for Corey Williams ("Corey the Server Guy") — sources hosting deals with spare IPs and resells capacity to MailerClub. This guide walks through everything from first-time setup to daily ops, covering the dashboard, the encrypted credential vault, and the autonomous CRM-update agent that watches Corey's AOL inbox and keeps the database in sync without human attention.

Audience: the operator (you). Read time: ~15 minutes. Mental model: the platform is your staff. The agents fetch, classify, and update; you review and approve.

---

Table of Contents

1. Architecture at a Glance
2. First-Time Setup
3. The Vault — Storing Secrets Safely
4. Wiring the AOL Inbox
5. The Auto-Update Agent (Background Worker)
6. Daily Ops Walkthrough
7. Importing the Legacy Spreadsheet
8. Adding Servers and IP Blocks
9. API Reference (Quick)
10. Troubleshooting
11. Appendix — Cron Schedule

---

1. Architecture at a Glance

Three processes run side by side:

Plus two infra containers (infra/docker-compose.yml):

The auto-update agent is the arq worker. It wakes up every 5 minutes to poll Corey's AOL inbox, every 15 minutes to ping provider billing panels, and once a day at 09:00 to sweep for expiring servers. See §5 and §11.

┌──────────────┐    poll    ┌──────────────┐    write    ┌──────────────┐
│  AOL Inbox   │ ─────────► │  arq worker  │ ──────────► │  Postgres    │
│  (IMAP IDLE) │            │  (5 min)     │             │              │
└──────────────┘            └──────────────┘             └──────────────┘
                                                                │
   ┌──────────────┐                                              │
   │  Web UI      │ ◄────── REST ────────── FastAPI ◄────────────┘
   │  (Next.js)   │                          API
   └──────────────┘

---

2. First-Time Setup

Skip ahead if your repo is already running — start the servers (§2.4) and jump to §4.

2.1 Prerequisites

• Linux (this guide assumes Ubuntu 24.04)
• Docker + docker compose
• Node ≥ 20
• Python ≥ 3.11

2.2 Clone and configure

cd /opt/hosting-crm
cp .env.example .env
# .env is gitignored — safe to keep secrets here, but vault-stored is preferred

2.3 Bring up Postgres and Redis

docker compose -f infra/docker-compose.yml up -d
docker ps --format '{{.Names}} {{.Status}}'
# expect: infra-postgres-1 Up (healthy)   infra-redis-1 Up (healthy)

2.4 Install and run

# API
cd apps/api
python -m venv .venv && source .venv/bin/activate
pip install -e ".[dev]"
alembic upgrade head
uvicorn app.main:app --host 127.0.0.1 --port 8000 &

# Web (new terminal)
cd ../..
npm install
npm run dev --workspace=web &

# Worker — the auto-update agent (new terminal)
cd apps/api && source .venv/bin/activate
arq app.workers.settings.WorkerSettings &

Visit:

• Dashboard: http://localhost:3000
• API docs: http://localhost:8000/docs

---

3. The Vault — Storing Secrets Safely

Every credential the platform handles — AOL app password, provider billing panel passwords, SSH private keys — lives in a Fernet-encrypted file under vault/. A symmetric master key unlocks them. Without that key, the encrypted blobs are unreadable.

3.1 Initialize the vault (run once)

cd /opt/hosting-crm/apps/api
source .venv/bin/activate
python -m app.vault.setup init
# → Master key created at /opt/hosting-crm/vault/.master.key
# → Back this file up. Without it, all stored secrets become unrecoverable.

Back up vault/.master.key immediately. Off-machine, encrypted, somewhere you trust. Losing it means you cannot decrypt anything stored from then on.

3.2 Store the AOL app password

python -m app.vault.setup put aol/imap-password
# Secret for 'aol/imap-password': ********
# → stored: aol/imap-password

The terminal hides the input (Python getpass), nothing lands in your shell history, and the encrypted blob ends up at vault/aol/imap-password.enc with mode 0600.

3.3 Verify

python -m app.vault.setup list
# aol/imap-password

python -m app.vault.setup get aol/imap-password
# (prints the plaintext — useful for sanity checks; every read is logged in the
#  vault_access_log table)

3.4 Store provider panel passwords

For every provider you give the agent login access to:

python -m app.vault.setup put providers/oneprovider/billing
python -m app.vault.setup put providers/hudsonvalley/billing
python -m app.vault.setup put providers/budgetvm/billing

Then on each Server record, set panel_password_vault_ref = "providers/oneprovider/billing" (via PATCH /servers/{id}). The future Playwright agent uses these refs to log in.

Every decrypt writes a row to vault_access_log so you can audit who read what and when.

---

4. Wiring the AOL Inbox

4.1 Get an AOL app password

AOL no longer accepts the account password for IMAP. You need an app password.

1. Sign in at https://login.aol.com.
2. Go to Account Security → Generate app password.
3. Name it (e.g. mhip-imap) and copy the 16-character string. It is shown once.

4.2 Store it in the vault (do not paste into shell or .env)

python -m app.vault.setup put aol/imap-password

4.3 Confirm .env points at the right ref

IMAP_HOST=imap.aol.com
IMAP_USER=coreytheserverguy@aol.com
IMAP_PASSWORD=
IMAP_PASSWORD_VAULT_REF=aol/imap-password
IMAP_FOLDER=INBOX

If IMAP_PASSWORD is set, it wins; otherwise the agent decrypts the vault ref. Keep IMAP_PASSWORD empty in production so rotation is a one-line vault re-put.

4.4 Manual smoke test

curl -X POST http://127.0.0.1:8000/agents/email/poll | jq
# {
#   "status": "ok",
#   "seen": 23,
#   "inserted": 5,
#   "by_class": {"OTHER": 18, "BILLING_INVOICE": 3, "SUSPENSION_NOTICE": 2}
# }

If you see "status": "skipped", "reason": "IMAP not configured", the agent could not resolve a password — recheck §3.2 and the env vars.

If you see an imaplib.IMAP4.error: AUTHENTICATIONFAILED, the app password was rejected — generate a fresh one (§4.1).

---

5. The Auto-Update Agent (Background Worker)

This is the piece that constantly updates new changes to the CRM. It is the arq worker running app.workers.settings.WorkerSettings.

5.1 What it does

Every wake-up tick the worker runs one of four jobs:

5.2 Inbox classification → CRM updates

When inbox_tick runs, every new message gets:

1. Classified into one of: SUSPENSION_NOTICE | ABUSE_COMPLAINT | BILLING_INVOICE | SERVER_READY | ACCOUNT_CREATED | TICKET_RESPONSE | OTHER
2. Linked to a provider via the sender's domain (best-effort substring match against providers.website and providers.billing_url, then a name token fallback).
3. Persisted to the inbox_messages table (deduped by Message-Id).
4. Side effects applied:
   • SUSPENSION_NOTICE → flips every ACTIVE server at that provider to SUSPENDED, bumps Provider.suspension_count, logs to provider_history.
   • ABUSE_COMPLAINT → bumps Provider.abuse_count, logs to history.
   • BILLING_INVOICE / SERVER_READY / ACCOUNT_CREATED / TICKET_RESPONSE → touches Provider.last_touch_at, logs to history.

This means: when OneProvider emails Corey at 03:14 AM saying his account was suspended, by 03:19 AM the dashboard reflects it. He wakes up to the truth.

5.3 Run / inspect the worker

# Run in a terminal you can watch
cd /opt/hosting-crm/apps/api && source .venv/bin/activate
arq app.workers.settings.WorkerSettings
# 09:55:00: Starting worker for 4 functions
# 10:00:00: 0a3f… inbox_tick() → {'status':'ok','seen':12,'inserted':2,'by_class':{...}}
# 10:00:00: 9e21… monitoring_tick() → 47 providers checked, 1 alert

To run it as a daemon, drop a systemd unit (suggested template):

# /etc/systemd/system/mhip-worker.service
[Unit]
Description=MHIP background agent (arq worker)
After=network.target

[Service]
Type=simple
WorkingDirectory=/opt/hosting-crm/apps/api
EnvironmentFile=/opt/hosting-crm/.env
ExecStart=/opt/hosting-crm/apps/api/.venv/bin/arq app.workers.settings.WorkerSettings
Restart=always
User=lio

[Install]
WantedBy=multi-user.target

Then sudo systemctl enable --now mhip-worker.service.

5.4 Inspect what the agent has been doing

# Counts per classification
curl -s http://127.0.0.1:8000/inbox/summary | jq
# { "total": 412, "by_class": {"OTHER":350,"BILLING_INVOICE":40,"SUSPENSION_NOTICE":3,...},
#   "last_received_at": "2026-04-30T08:14:22+00:00" }

# Recent suspensions only
curl -s "http://127.0.0.1:8000/inbox?classification=SUSPENSION_NOTICE&limit=20" | jq

---

6. Daily Ops Walkthrough

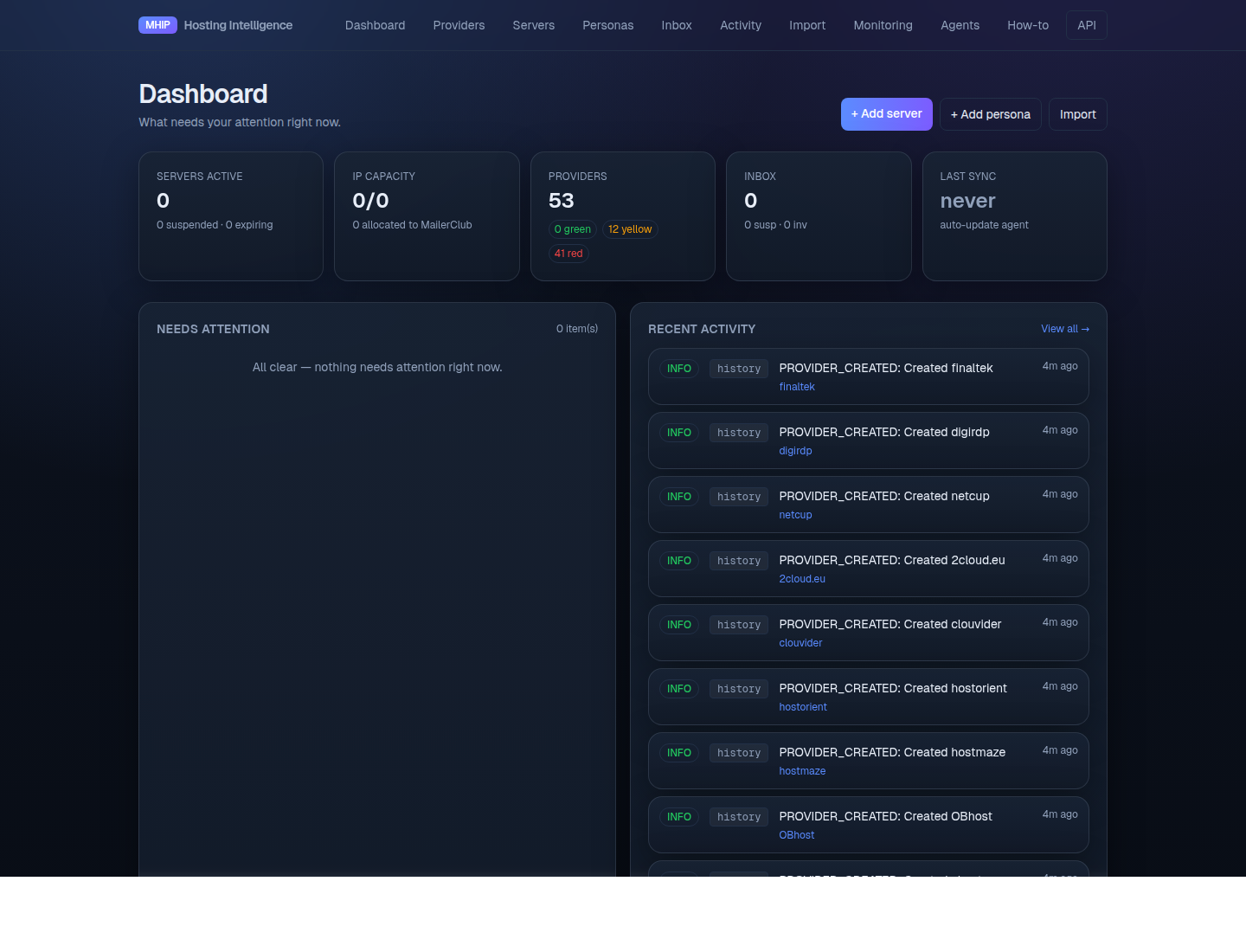

6.0 The Dashboard

http://localhost:3000/ (or https://hosting.mailerclub.club/) is the operator's landing page — what's broken, what's expiring, what just happened. Open this between other tasks to know in 10 seconds whether anything needs your attention.

Five KPI cards across the top, all clickable:

• Servers active — count of ACTIVE servers; secondary line shows suspended count and servers expiring within 7 days
• IP capacity — available / total IPv4 hosts across non-retired blocks; secondary line shows how many are allocated to MailerClub
• Providers — total count with a per-tier breakdown (green / yellow / red)
• Inbox — total classified messages, with suspension and invoice counts highlighted
• Last sync — heartbeat for the auto-update agent. Green if < 10 min, amber if < 1 h, red otherwise. If this goes red, the inbox poller has stalled — check arq logs and the AOL credentials.

Below the KPIs, two columns:

• Needs attention — a single prioritized queue (max 10 items). Pulls from suspension inbox notices (CRITICAL), servers expiring or invoicing within 7 days (WARNING), and recent IP-block flags. Click an item to jump to the relevant detail page. Empty? You see "All clear — nothing needs attention right now."
• Recent activity — top 12 from the activity timeline, with a View all → link.

A full-width Recent inbox strip below shows the last 5 classified messages.

Top-right of the dashboard: quick actions for + Add server, + Add persona, and Import.

6.1 The Providers page

http://localhost:3000/providers is the canonical provider list — what replaces the spreadsheet's "Hosting" tab. Each row links to a detail page with notes, history, technical specs, and score breakdown.

Filters at the top (All / Active / Green / Yellow / Red) match the spreadsheet's color coding:

• Green — reliable, default-recommended
• Yellow — caution / unverified
• Red — avoid (fast-suspender, dirty IPs, payment issues)

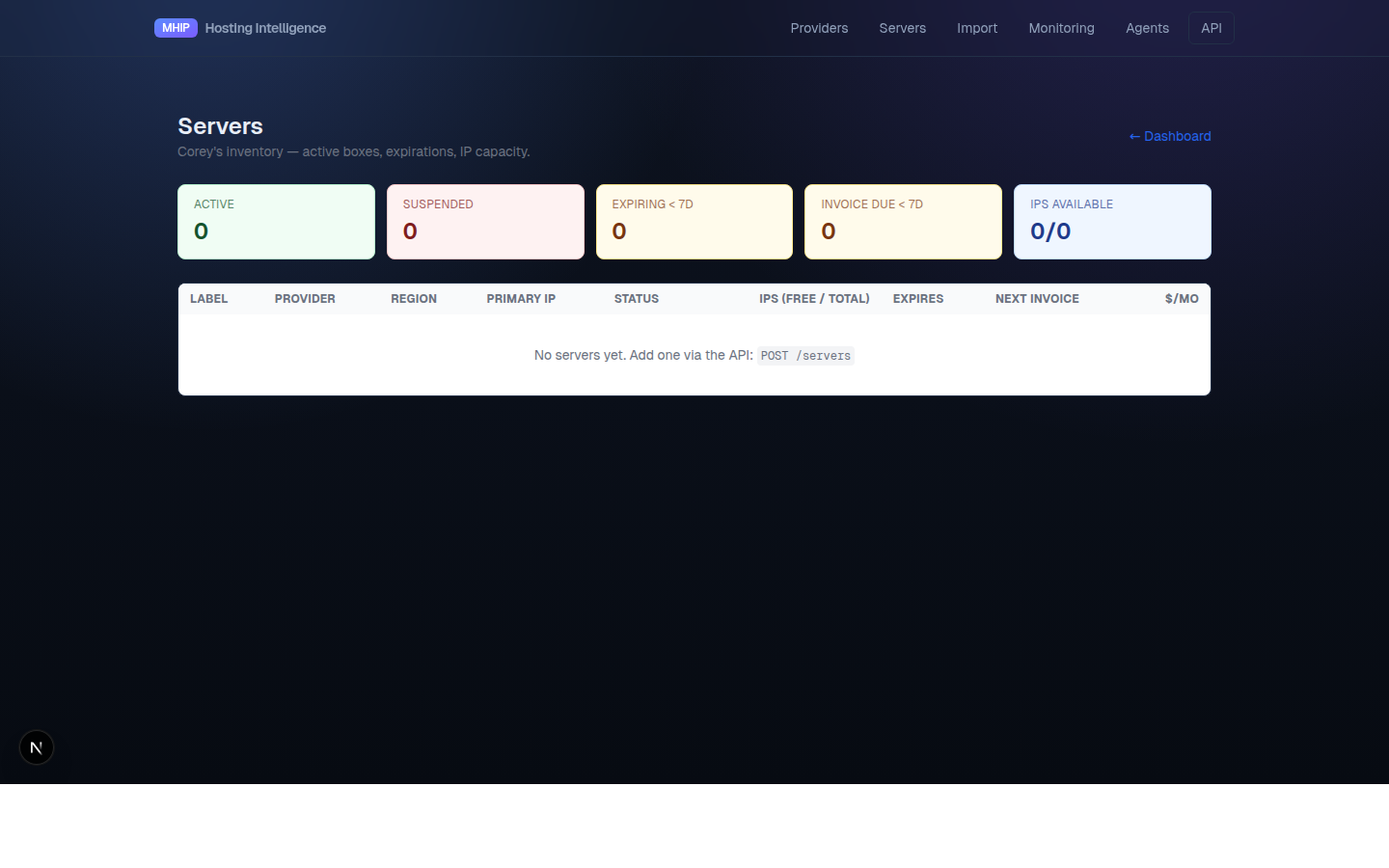

6.2 The Servers page

http://localhost:3000/servers — the inventory.

Five counters at the top:

• Active / Suspended — current status
• Expiring < 7d — servers whose expiration_date falls in the next week
• Invoice due < 7d — servers whose next_invoice_date falls in the next week
• IPs available — total - allocated_to_client across non-retired blocks

The table sorts by soonest expiration first. When the daily sweep flags a server, it lands at the top.

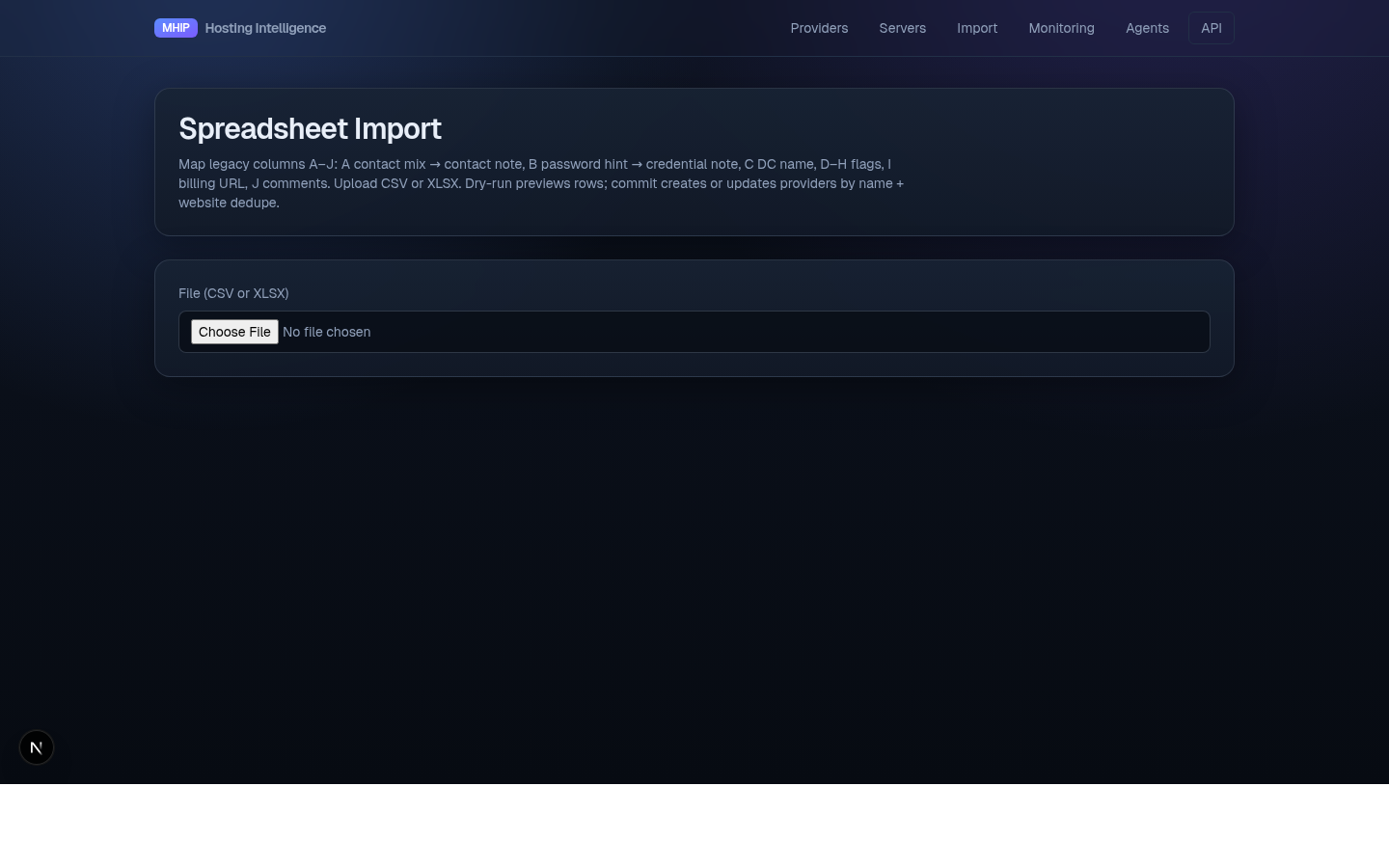

6.3 The Import page

http://localhost:3000/import — drop in your Master_Business_File.xlsx to seed providers.

Always Dry Run first, eyeball the row count, then commit.

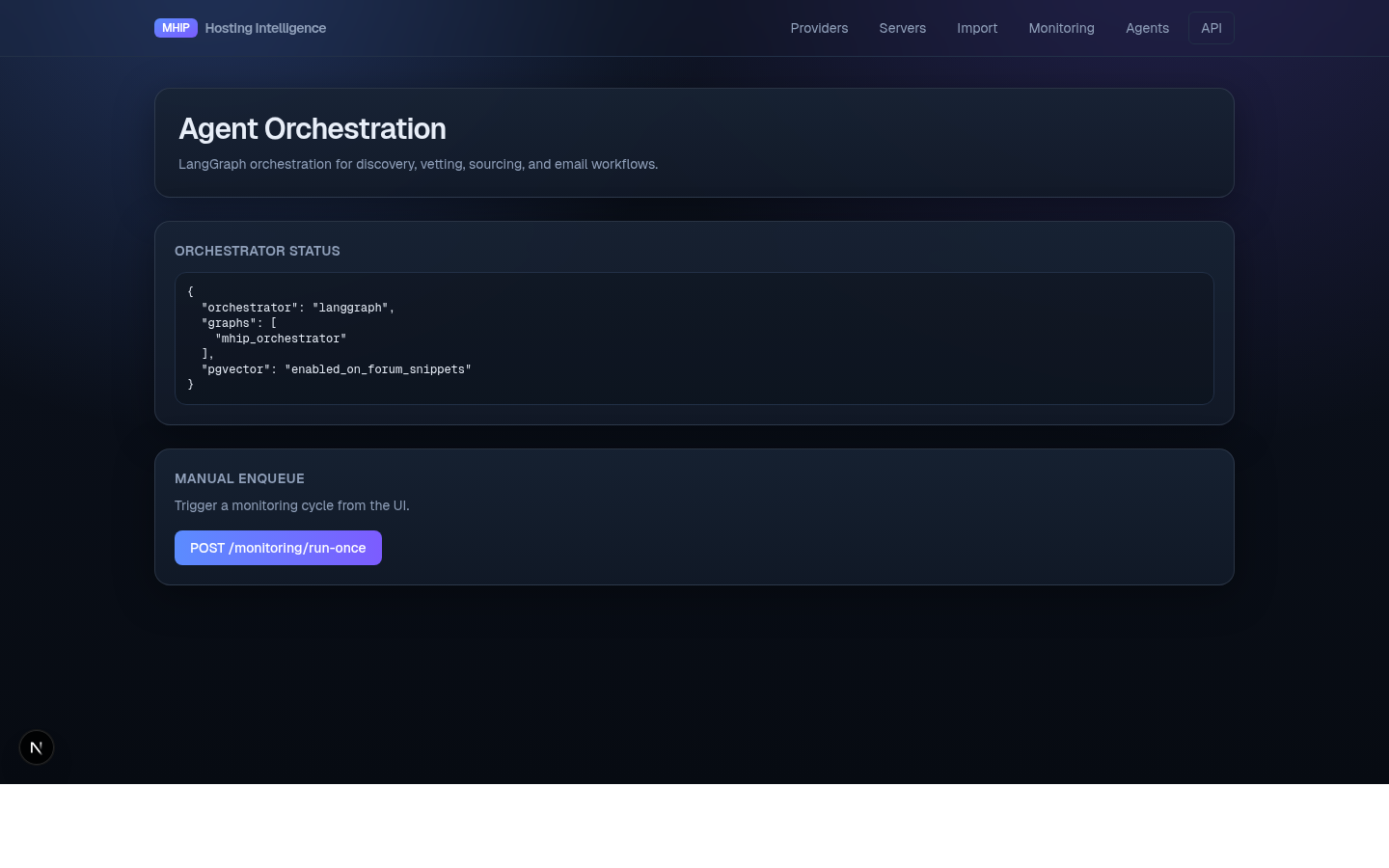

6.4 The Agents page

http://localhost:3000/agents — manual triggers for inbox poll, monitoring, etc. You should rarely need it; the worker does this automatically. Useful for "I changed something and want to see it now."

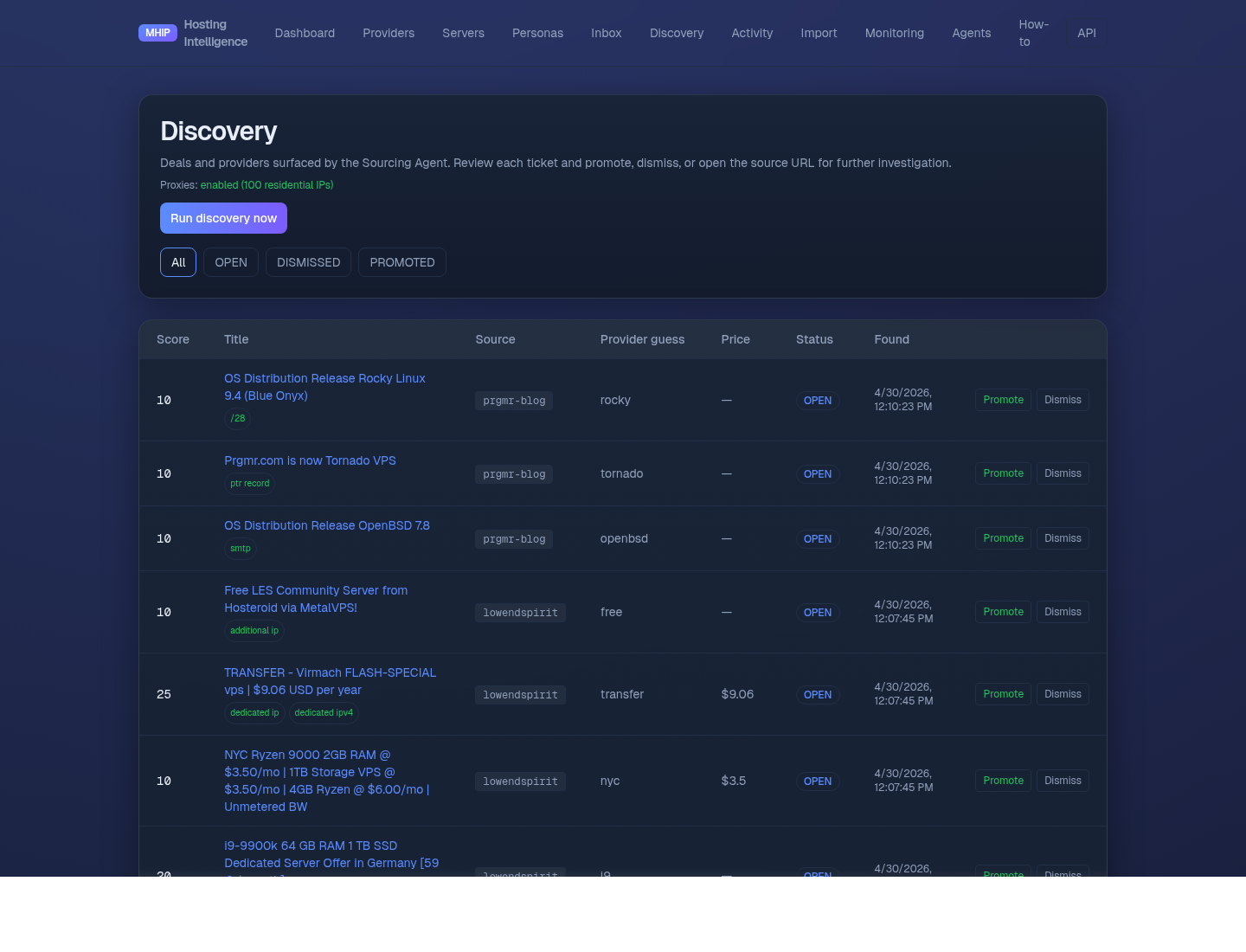

6.4b The Discovery page

http://localhost:3000/discovery — deals and providers surfaced by the Sourcing Agent.

Every 6 hours (also runnable on demand via the Run discovery now button) the agent fetches multiple feeds via a rotating residential proxy (webshare.io, ~100 sticky IPs inherited from /opt/mailerclub/.env), scores each post against keyword signals (port 25, dedicated ip, /29, etc.) and price tier, and creates an OPEN ticket for anything that scores ≥ 5.

Active sources (~190 items per pull):

The fetcher generalizes both RSS 2.0 and Atom, retries up to 8× with a fresh residential IP on transient failures (403 / 407 / 429 / 5xx), and reports any feeds that exhaust retries via the fetch_errors field on POST /discovery/run.

Disabled sources that need future work:

• Reddit (r/webhosting, r/sysadmin, r/selfhosted) — Reddit hard-blocks webshare's residential ASN pool with 403 even via old.reddit.com. To enable, register a Reddit app at https://www.reddit.com/prefs/apps, store client_id / client_secret in the vault, and swap the fetcher to OAuth at https://oauth.reddit.com/r/{sub}/new. See the DISABLED_SOURCES tuple in apps/api/app/agents/discovery.py.
• WebHostingTalk — Cloudflare's JS challenge blocks even residential IPs. Would need a headless browser (Playwright with playwright-stealth) or a managed scraper.

Operator workflow per ticket:

• Promote → mark for follow-up; future enhancement will auto-create a Provider record
• Dismiss → hide from default view (not deleted; visible under the DISMISSED filter)
• The title links to the source post; signal chips show which keywords matched

Why residential? Forum sites (LowEndTalk, WHT, Reddit) and Cloudflare aggressively fingerprint datacenter ASNs, and we don't want providers to see every pricing page viewed from the same VPS IP. Residential rotation keeps the recon quiet. Auth'd APIs (Spamhaus, MXToolbox, AOL IMAP) bypass the proxy on purpose — see apps/api/app/proxies.py for the rules.

6.4c The Catalog page

http://localhost:3000/catalog — structured product catalog assembled by the Catalog Agent.

Where Discovery looks at what's being announced this week (RSS), the Catalog agent answers what's actually for sale right now by scraping each known provider's billing URL daily at 02:00 (or on demand via Scan all providers). Products land in provider_products with type PLAN | IP_ADDON | DEDICATED_BLOCK, and price changes are appended to provider_product_prices so we can detect "OneProvider just dropped /29 to $4" automatically.

Filters: All / Has IP add-on / by type. The "Has IP add-on" filter is the one to use when fulfilling a MailerClub IP request — it shows products where the agent detected +N IPs add-ons, multi-IP plans, or /28-/30 block options.

Fetch path: each scrape tries the shared adfetch service first (/opt/mailerclub/adfetch, JS-rendering capable) and falls back to direct HTTPS through a residential proxy when adfetch returns no usable HTML (timeout or gzip-mangle on Content-Encoded responses). The error field on each scan summary tells the operator which path served each URL.

Known limitations of v1:

• Adfetch returns gzip-encoded bytes verbatim for Content-Encoding: gzip responses — the JSON encoder mangles the binary, so we ignore that field and fall back. Fix would be in adfetch itself.
• The extractor is heuristic: it reads stripped-tag text and looks for price + plan keywords. Pages with prices loaded via JS-only render show zero candidates; consider running the agent through adfetch's Playwright worker for those.
• Cap of 80 candidates per page to avoid noise.

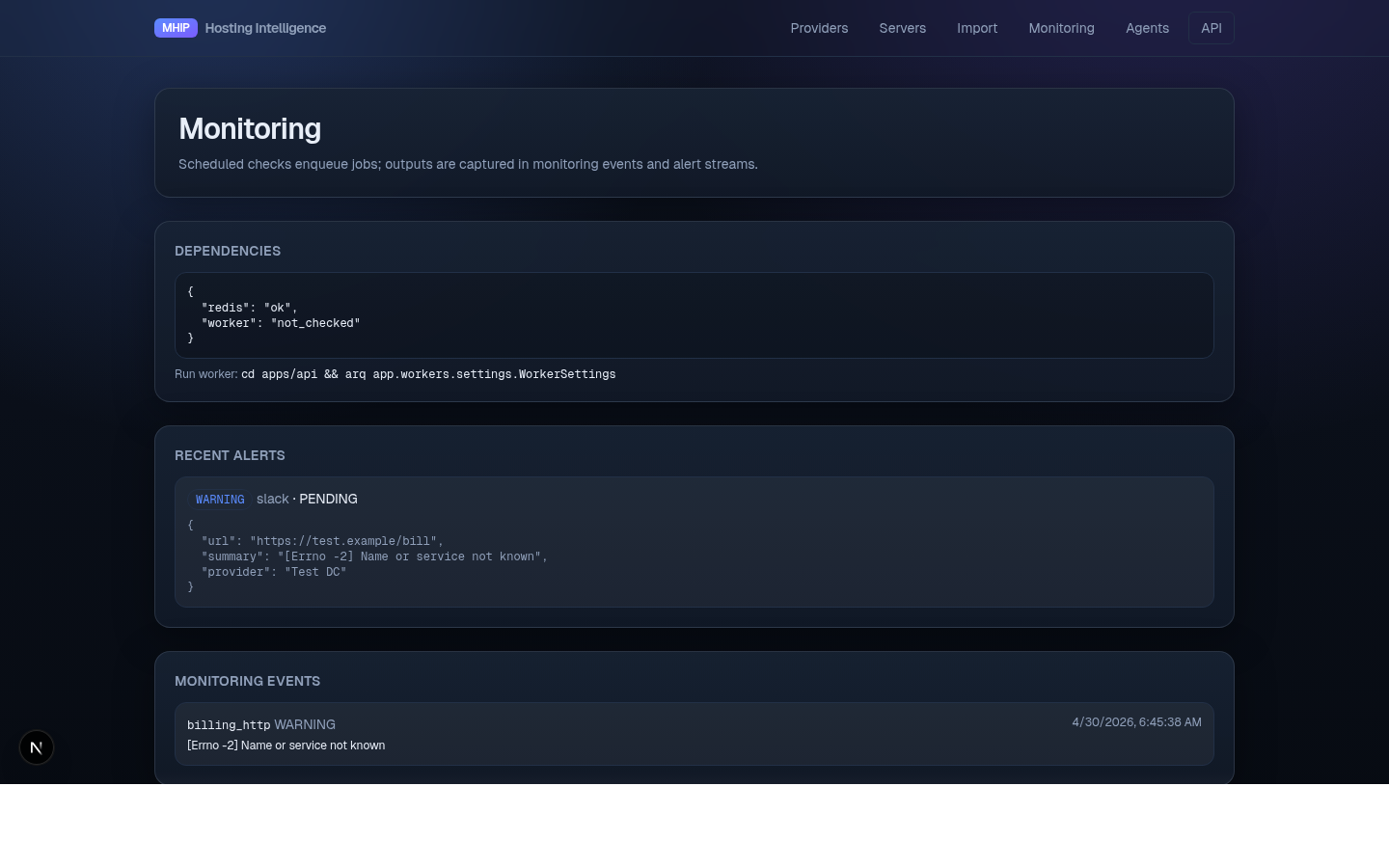

http://localhost:3000/monitoring — alert and event stream from the monitoring agent.

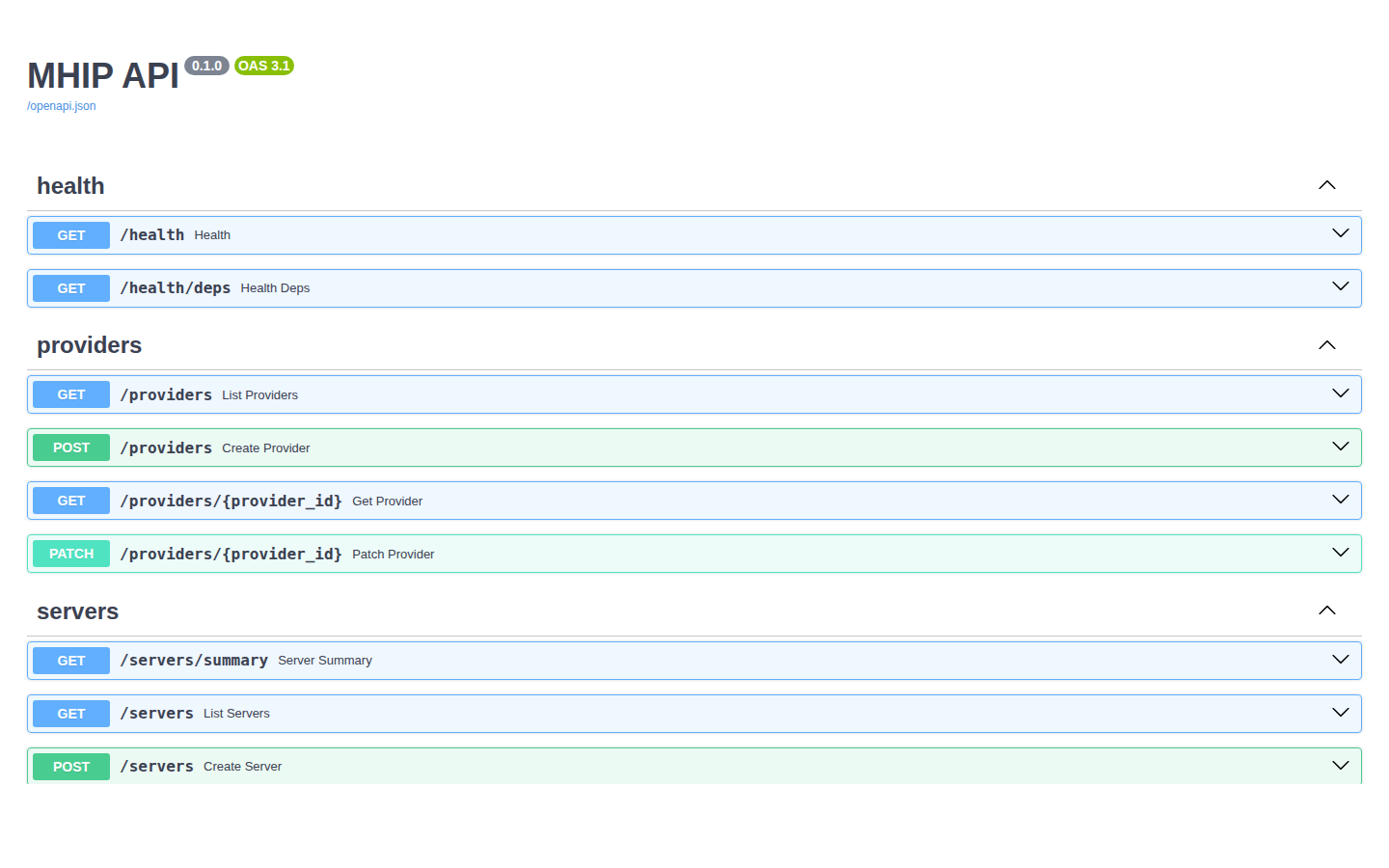

6.6 The API explorer

http://127.0.0.1:8000/docs — every endpoint, every schema, with "Try it out" buttons.

---

7. Importing the Legacy Spreadsheet

The original Master_Business_File.xlsx columns map as follows:

If any of K–O is non-empty, a Server record is created and linked to the provider on that row. Otherwise only the provider is seeded — old spreadsheets keep working unchanged.

Use the dashboard's Import page or:

curl -F file=@Master_Business_File.xlsx \
  "http://127.0.0.1:8000/import/spreadsheet?dry_run=true"

---

8. Adding Servers and IP Blocks

Once a provider exists, log a server you bought from them:

PROVIDER_ID="$(curl -s 'http://127.0.0.1:8000/providers' | jq -r '.[0].id')"

curl -X POST http://127.0.0.1:8000/servers \
  -H "Content-Type: application/json" \
  -d @- <<EOF
{
  "provider_id": "$PROVIDER_ID",
  "label": "OP-AMS-01",
  "hostname": "vps01.example.com",
  "primary_ip": "185.220.100.10",
  "region": "EU-Amsterdam",
  "plan_name": "Dedicated 2700",
  "monthly_cost_usd": 89.00,
  "status": "ACTIVE",
  "signup_date": "2026-04-01",
  "expiration_date": "2027-04-01",
  "next_invoice_date": "2026-05-01",
  "ips_included": 1,
  "ips_addon_purchased": 4,
  "panel_url": "https://oneprovider.com/portal",
  "panel_username": "corey-1234",
  "panel_password_vault_ref": "providers/oneprovider/billing"
}
EOF

For now, IP blocks are added directly via SQL or a future router (POST /ip-blocks):

INSERT INTO ip_blocks (id, server_id, cidr, ip_version, asn, region, health_status,
                       allocated_to_client, acquired_date)
VALUES (gen_random_uuid(),
        '<server-uuid>',
        '185.220.100.8/29',
        'IPv4',
        'AS12345',
        'EU-Amsterdam',
        'CLEAN',
        'MailerClub',
        '2026-04-01');

After insert, GET /servers/summary updates immediately — IP counts are derived live.

---

9. API Reference (Quick)

The full schema is at /docs. Most-used endpoints:

---

10. Troubleshooting

"IMAP not configured"

# 1. Vault key present?
ls -la /opt/hosting-crm/vault/.master.key  # mode 600, ~45 bytes

# 2. AOL secret present?
python -m app.vault.setup list | grep aol

# 3. .env points at the right ref?
grep ^IMAP /opt/hosting-crm/.env

"AUTHENTICATIONFAILED"

The AOL app password was rejected. AOL invalidates app passwords on certain account events — generate a fresh one (§4.1) and re-store it (python -m app.vault.setup put aol/imap-password). The next inbox_tick will succeed.

Worker not running new jobs

# Did you bounce the worker after editing workers/settings.py? It loads cron at startup.
ps aux | grep "arq app.workers"

If you see only one entry and it's stale, kill it and re-launch.

Migration drift

cd /opt/hosting-crm/apps/api && source .venv/bin/activate
alembic current   # latest applied
alembic heads     # latest available
alembic upgrade head

Servers page shows 404

Make sure the API has been restarted since apps/api/app/routers/servers.py was added.

sudo pkill -f "uvicorn app.main:app"
# (your supervisor restarts it; otherwise relaunch by hand)
curl -s http://127.0.0.1:8000/openapi.json | jq '.paths | keys[]' | grep server

"address already in use" on :3000

Another Next.js app on the host is bound to 3000 (e.g. the MailerClub editor). Run MHIP web on a different port:

cd /opt/hosting-crm/apps/web
npx next dev --port 3001
# then visit http://localhost:3001

---

11. Appendix — Cron Schedule

The worker's effective schedule, as set in apps/api/app/workers/settings.py:

To change cadence, edit WorkerSettings.cron_jobs and restart the worker.

---

End of guide. When something is unclear, the hierarchy is: this doc → API at /docs → the source under apps/api/app/. Most non-obvious decisions are commented at their site.
